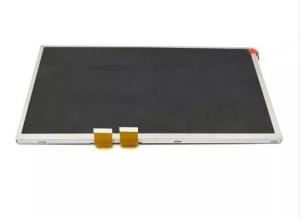

800*480 10.2 Inch At102tn03 V.8 Industry 10.2" Display Tft Lcd Screen Touch Panel
10.2 inch lcd display Innolux AT102TN03 V.8 is a 10.2-inch LCD module product with a-Si TFT-LCD technology, which is equipped with WLED backlight, no backlight drive, no touch, wide temperature, white light LED backlight, upper / bottom, left / right flip display, and surface fog surface. It has an operating temperature of-30 ~ 85 C, storage temperature of-30 ~ 85, display resolution of 800 (RGB) 480 (WVGA), aspect ratio of 15:9 (width: height), and pixels are arranged in RGB vertical bars. Its display area size is 222132.48 (wide height) mm, visual size is 225.3135.7 (wide height) mm, appearance size is 235 (wide) 145.8 (height) 6.4 (thick) mm, product net weight is 309g (Typ.). The AT102TN03 V.8 uses a TTL (1 ch, 6-bit) signal interface, with a total of 60 pins, an FPC connection, and a drive screen voltage of 3.3/9.2/16/-7V (Typ.) (VCC / AVDD / VGH / VGL). This product is suitable for on-board display, industrial automation, electronic instruments, medical instruments.
10.2 inch tft lcd display product details
| Screen Size | 10.1 inch tft lcd display |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Format | 800(RGB)×480 [WVGA] 91PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 222(H)×132.48(V) mm |
| Outline Size | 235(H)×145.8(V) ×6.4(D) mm |
| Bezel Area | 225.3(H)×135.7(V) mm |
| Brightness | 350 (Typ.)(cd/m²) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Treatment | Antiglare |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/45/65(Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 50% NTSC |
| Lamp Type | WLED [3S10P] , 20K hours , W/O Driver |
| Panel Weight | 309g (Typ.) |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Signal Interface | TTL (1 ch, 6-bit) , 60 pins FPC |
| Input Voltage | 3.3/9.2/16/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
10.2 inch tft lcd display features
This product is suitable for on-board display, industrial automation, electronic instruments, medical instruments.
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
faq
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
